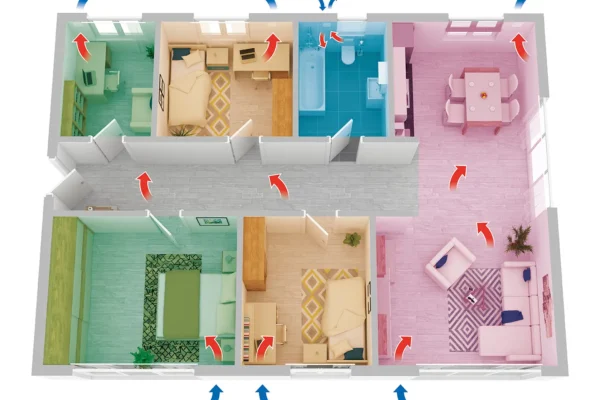

The iV14-Zero is a decentralised ventilation system with heat recovery . This unit has a patented noise reduction. This makes it very suitable for bedrooms and rooms adjacent to busy roads.
- 87% heat recovery
- Keeps out disturbing street noise up to 60dB
- Whisper-quiet comfort
- Summer night cooling
- 5 year warranty on electrical components
- 30 year warranty on ceramic heat exchanger
- TUV Rheinland certificate
NOISE REDUCTION
With a central ventilation system, especially with natural ventilation, there is a risk of noise pollution from outside. This is a lot less with a decentralized ventilation system. So is it a busy environment? Then the iV14-Zero is a very suitable solution:
Tip: the sound-absorbing technology is also available for the Smart and Twin solutions.
OPERATED VIA APP
We are the only one in the market to offer a solution with wireless operation. The controller communicates with the individual ventilation units via the stable 868 MHZ radio connection. The display gives you all the important information about humidity, temperature, CO2 percentage, etc. Are you comfortable on the couch? You can set and arrange everything via a handy app.
- Suitable for the iV-Smart+ and the iV14-Zero. V
XENION FAN
Traditional EBM Papst fans are often used in the market, the same as in the automotive industry. These are designed to turn in one direction and make more noise. Our ventilation solutions contain a Xenion fan. This is optimized to rotate in two directions. In addition, they have larger leaves. This makes it move more air with less RPM/noise.
- Is there a storm? Our technology has a pressure sensor to eliminate overpressure.
UNIQUE CERAMIC HEAT EXCHANGER
The ceramic block is made of baked clay and is therefore a natural product. In addition, it has a special honeycomb structure. This provides more surface area and therefore:
- Higher ventilation flow rate
- Higher efficiency
- More heat retention in winter
SUMMER NIGHT COOLING
With the iV14-Zero you can also cool passively. With summer night cooling you can achieve approximately 65% cold recovery during night ventilation.
| Minimum facade thickness (incl. plaster): | 270mm |
|---|---|
| Wall duct Ø: | 225mm |
| Thickness tube Ø: | 180mm |
| Heat recovery: | 87% |
| Flow rate (in WTW operation): | 8.5 – 29 m3/h |
| Flow rate in extraction function: | 17 – 58 m3/h |
| Assets | 3W |
| Power consumption: | 0.15 W/(m3/h) |
| Operating voltage: | 6 – 16 V DC |
| Noise emission: | 10 – 31 dB(A) |
| Noise reduction (toz grille or open window): | 48 – 56 dB |
| Energy label: | A+ / A |
| Dust filter: | G4 |
FAQs
What types of filters are there?
- Standard variant
- Special to filter odors (toilet, bathrooms)
- Special one to filter dust & pollen (due to hay fever)
How often should you clean a filter?
We recommend checking and cleaning the filter every 6 months. You can clean the standard variant yourself with water. Then let it dry thoroughly.
How often should you replace a filter?
We recommend replacing the filters every 3 years.
Do you also suffer from condensation?
To ensure that no condensation occurs indoors, always place the unit with a slope towards the outside. In addition, the pipe always protrudes due to condensation.
Are the cover grilles available in different colours?
Yes, there are standard colours, but available in any RAL colour on request.
Do I also experience noise pollution in, for example, the bedroom?
The noise of the fan is minimal, see the data sheets for this. In addition, the units can be programmed so that they ventilate during the day, for example, but turn off as soon as you go to sleep. You can also control the strength of the ventilation yourself.
In addition, the ceramic block ensures that noise from outside is dampened (traffic, aircraft, lawn mower, etc.)
